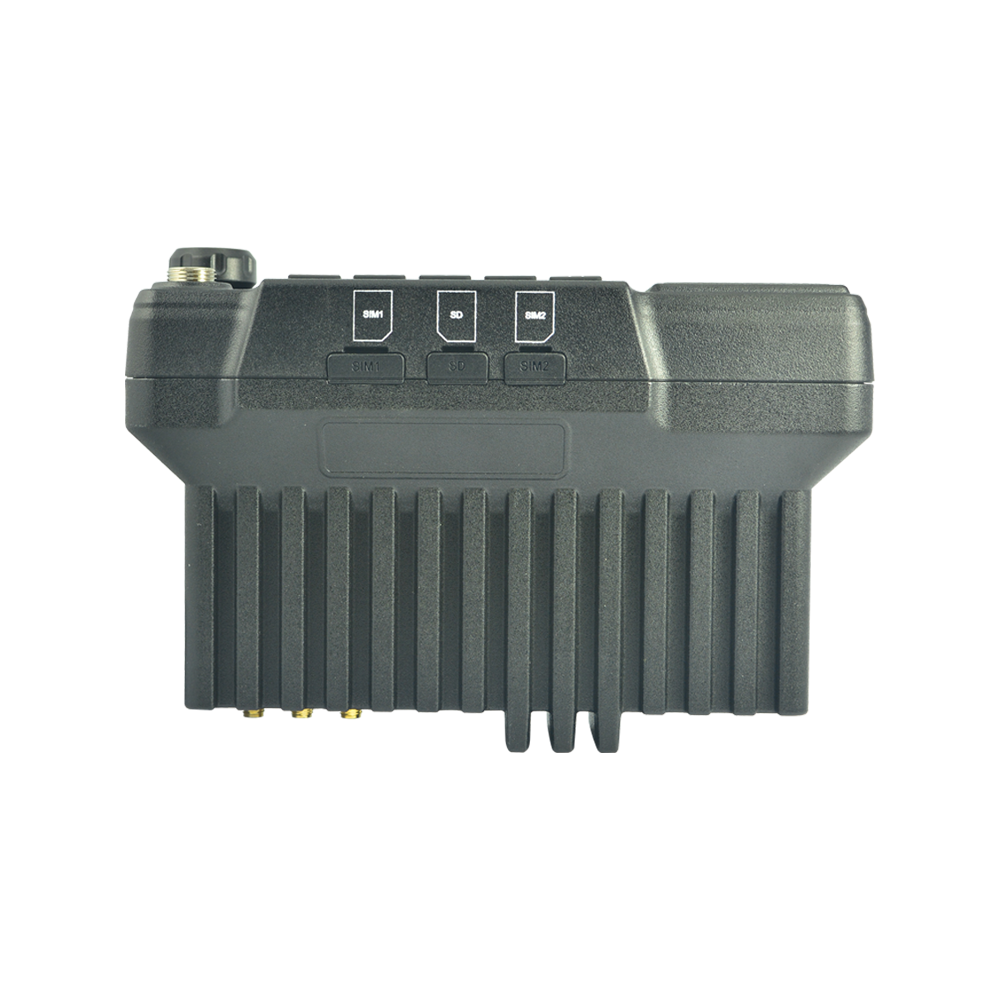

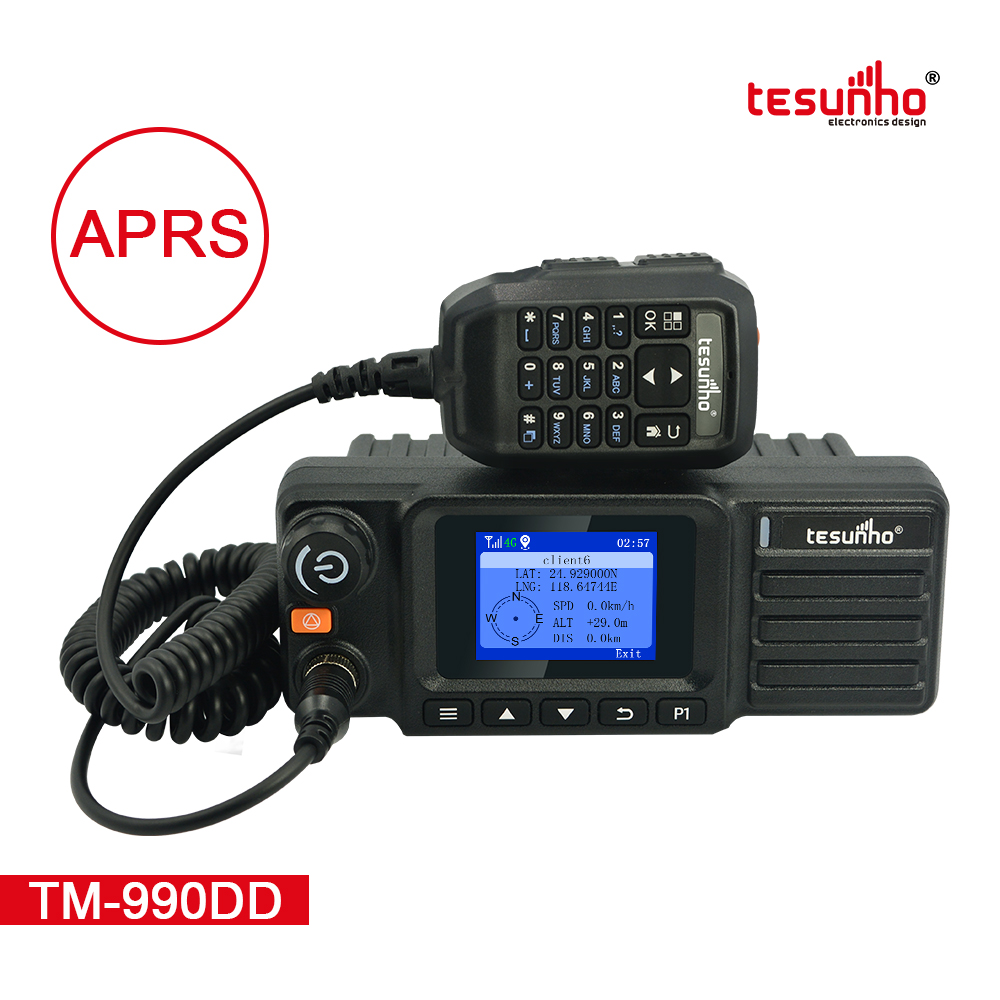

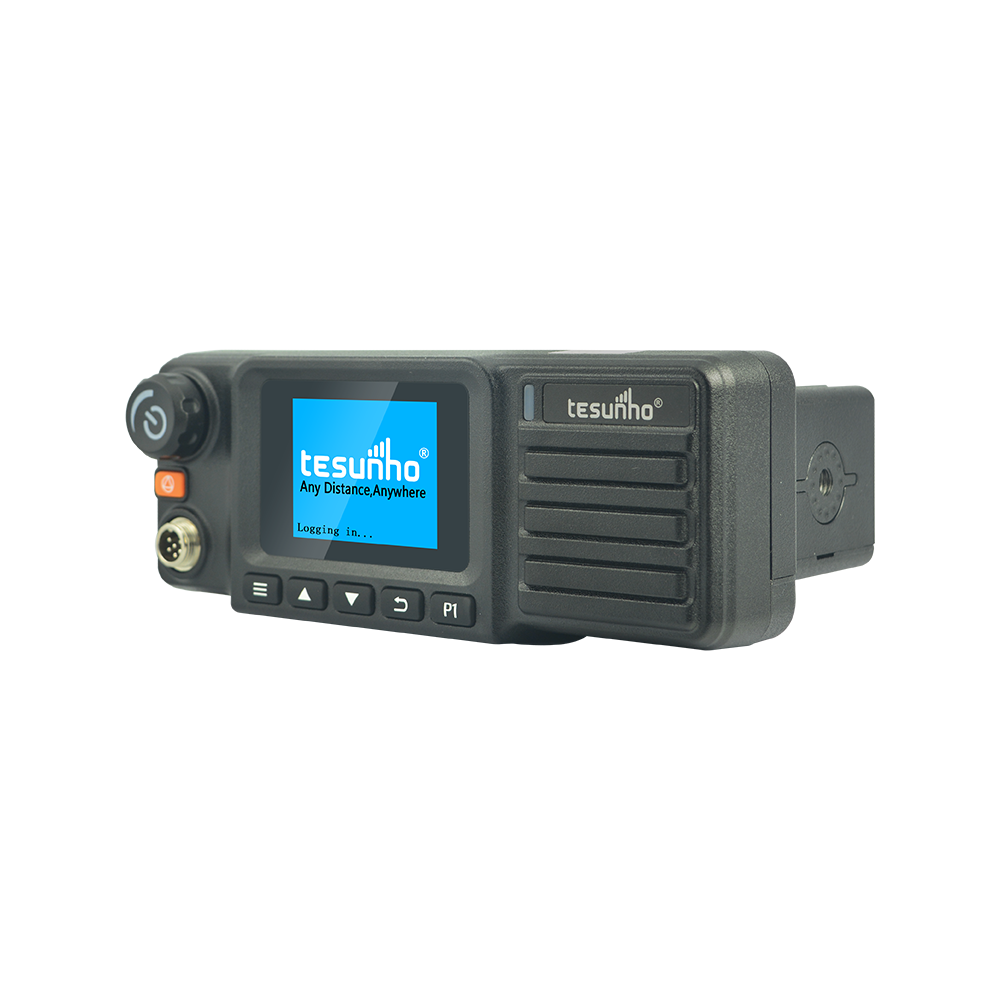

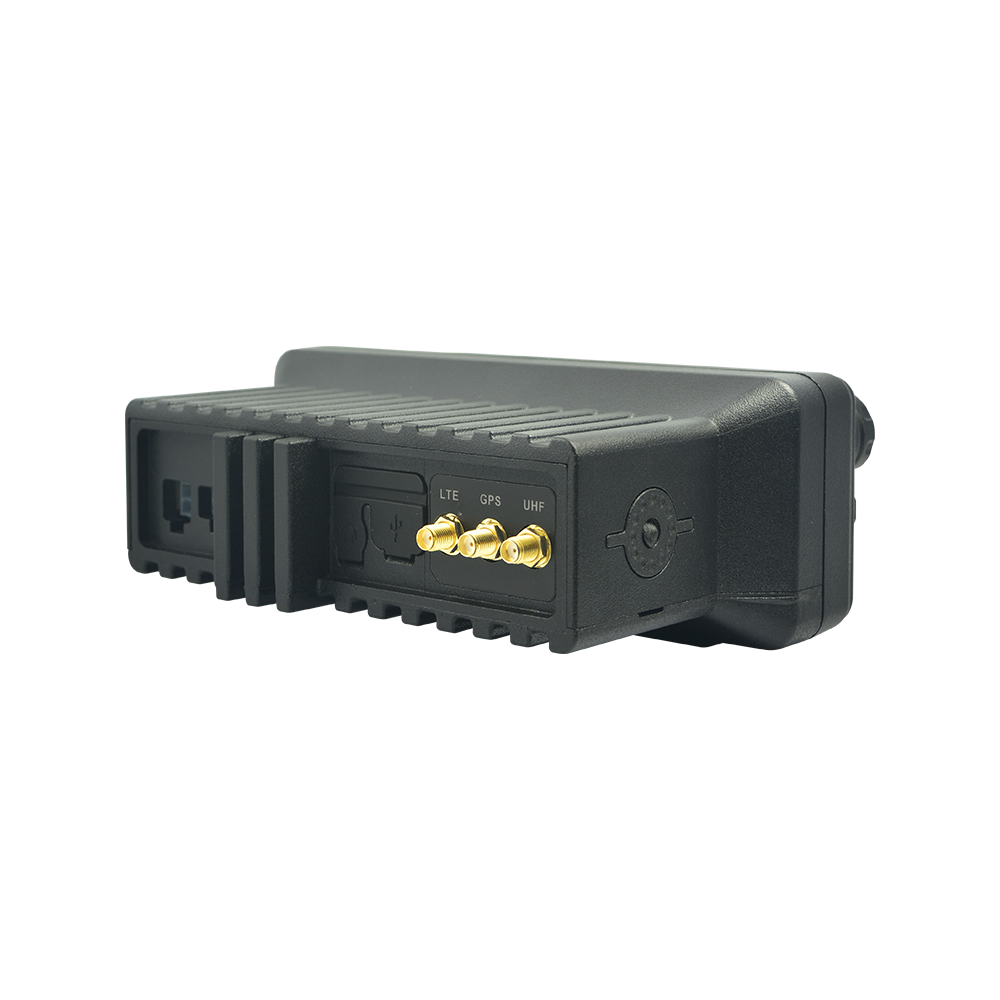

Tesunho TM990DD Vehicle Walkie Talkie 4G DMR Radio For Transporting Company

1. Wide verizon LCD

2. Protection to over voltage, over current, overloading and thunderstrike

3. Screen flip function

4. Shortcut to switch group/user and talking history

5. Loud audio and audio control lock function

6. Multimedia Speaker

7. Wide range of input voltage options: 12-28V

8. Can be a 5V 1A quick charger for mobile phone

9. exteral speaker is available with Tesunho's standard

10. 8-pin secondary development jack available

11. Maximum bracket rotate degree: 270 degree



Send InquiryBuy Now

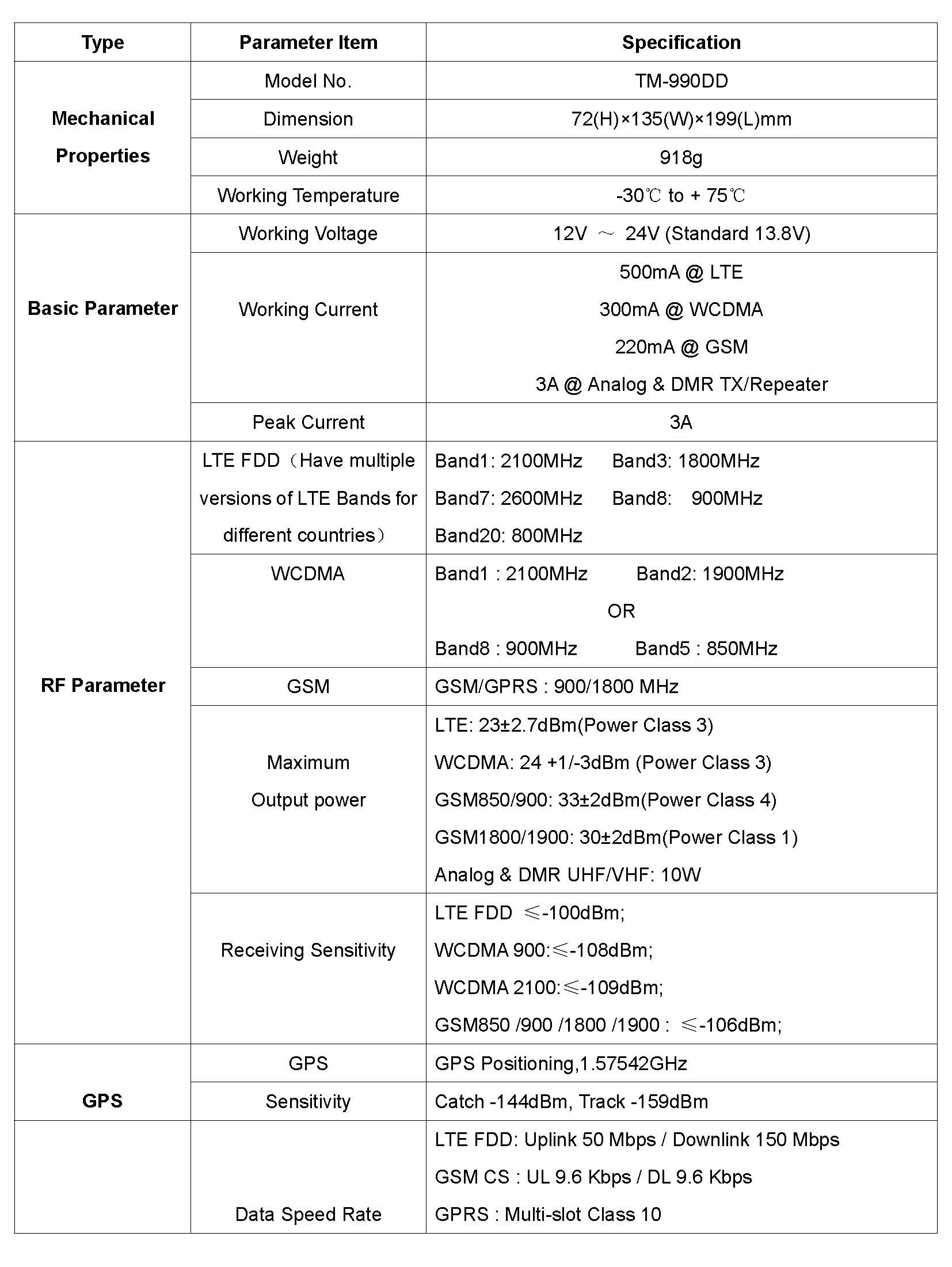

Specifications:

Type

Parameter Item

Specification



Mechanical Properties

Model   No.

TM-990DD

Dimension

72(H)×135(W)×199(L)mm

Weight

900g

Working   Temperature

-30 to + 75





Basic Parameter

Working   Voltage

13.8V~24V



Working   Current

250mA   @ UTMS 2100/900

200Ma   @ GSM900

3A   @ Repeat

Peak   Current

3A













RF Parameter

LTE   FDDHave multiple versions of LTE Bands for   different countries

Band1:   2100MHz   Band3: 1800MHz

Band7:   2600MHz   Band8:  900MHz

Band20:   800MHz

WCDMA

Band1   : 2100MHz     Band2: 1900MHz

                  OR

Band8   : 900MHz      Band5 : 850MHz

GSM

GSM/GPRS   : 900/1800 MHz



Maximum

Output   power

WCDMA  900 /2100MHz : Power Class 3

(+24dBm   +2.5dBm /-1.5dBm);

GSM/GPRS   850 /900 MHz : Power Class 4

(+33dBm   +2.5 dBm /-0.5 dBm);

GSM/GPRS   1800 /1900 MHz : Power Class 1

(+30dBm   +2.5 dBm /-0.5 dBm);



Receiving   Sensitivity

WCDMA   900:-108 dBm;

WCDMA   2100:-109 dBm;

GSM850   /900 /1800 /1900 : -106 dBm;



GPS

GPS

GPS   Positioning,1.57542GHz

Sensitivity

Catch   -144dBm, Track -159dBm







Technology Standard





Data   Speed Rate

GSM   CS : UL 9.6kpbs / DL 9.6kpbs

GPRS   : Multi-slot Class 10

EDGE   : Multi-slot Class 12

WCDMA   CS : UL 64kpbs / DL 64kpbs

WCDMA   PS : UL 384kpbs / DL 384kpbs

Protocol

HSDPA   / WCDMA/ EDGE/ GPRS/ GSM















DMR

GENERAL

Frequency   Range

UHF : 400-470MHz

Channel   Number

199

Channel   Space

25   /12.5KHz

Frequency   Stability

±0.5   ppm

Channel   Capacity

200

Zone   Capacity

32

TRANSMITTER


Wide   band25K

Narrow   band12.5K

Power   Output

H:10W  L:5W

Modulation

16KΦF3E

          11KΦF3E

Modulation   Limiting

±5   KHz

     ±2.5 KHz

Spurious   Emission

-36dBm

-36dBm

Adjacent   Channel Power

70dB

60dB

Audio   Distortion

5%

RECEIVE


Wide   band (25K)

Narrow   band (12.5K)

RF   Sensitivity Analog

0.22   μV(12db SINAD)

RF   Sensitivity

Digital

0.22   μV/ BER 5%

Adiacent   Channel Selectivity

60dB

55dB

Intermodulation   Rejection

65dB

60dB

Spurious   Response

65dB

65dB

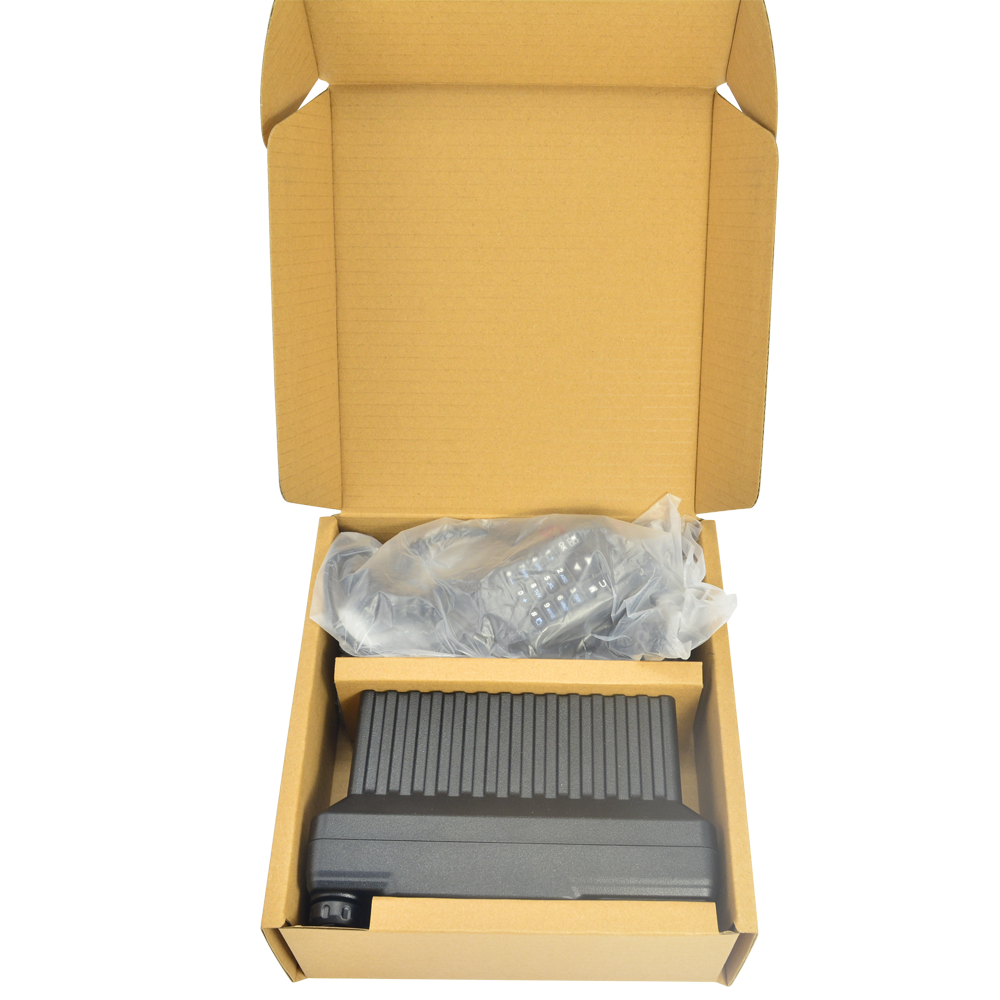

Packaging & Shipping :

Standard Accessories:



Packing Details

DIMENSION   & WEIGHT

Item

One   Unit

Standard   Carton





Delivery   Method



Size(cm)

Gross Weight(kg)

Quantity(pcs)



Size(cm)

Gross   Weight(kg)



TM990

DD



22.5*22*8.0



1.68



10



48*42*24



17.68



DHL/FedEx/TNT/EMS/By Air/By sea


Lead  Time

Item

Quantity(pcs)

Production   Lead Time



Walkie   talkie

1-50

1-3   days

20-200

2-5   days

200-500

2-10   days

500-1000

5-21   days

Certifications

Standard Packing

Payment Method

Trade Assurance  / Bank transfer / Western Union / MoneyGram / Paypal / L/C

Our Services

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

About Us:

about us.jpg

4G /3G + DMR 10W PoC Mobile radio
3 Working Modes:  DMR only, PoC only, Dual Modes
Repeater Function to realize communication between PoC & DMR Radios

Main Features:

1. Wide verizon LCD

2. Protection to over voltage, over current, overloading and thunderstrike

3. Screen flip function

4. Shortcut to switch group/user and talking history

5. Loud audio and audio control lock function

6. Multimedia Speaker

7. Wide range of input voltage options: 12-28V

8. Can be a 5V 1A quick charger for mobile phone

9. exteral speaker is available with Tesunho's standard

10. 8-pin secondary development jack available

11. Maximum bracket rotate degree: 270 degree


Applications:
Unique for: taxi/bus, transporting company and logistics
Popular for: security guard, railway, army, government, rescue, police and traveling
