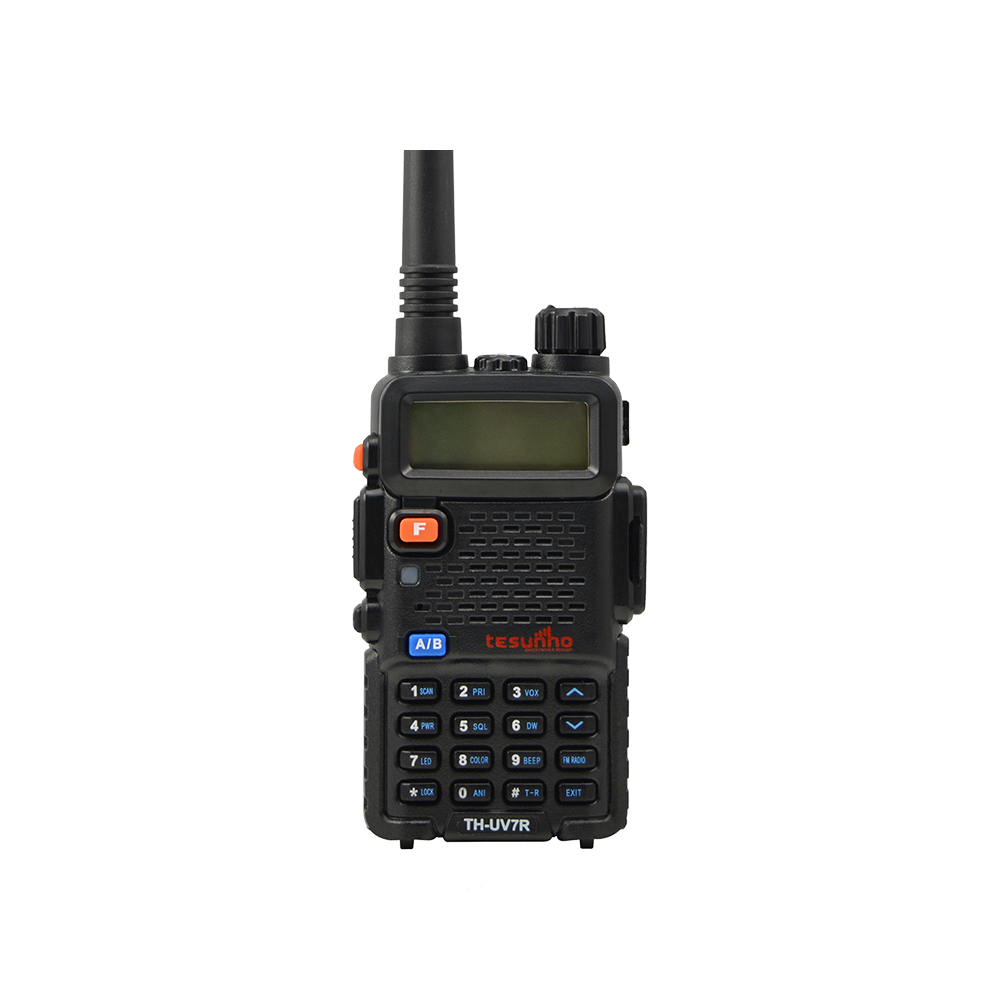

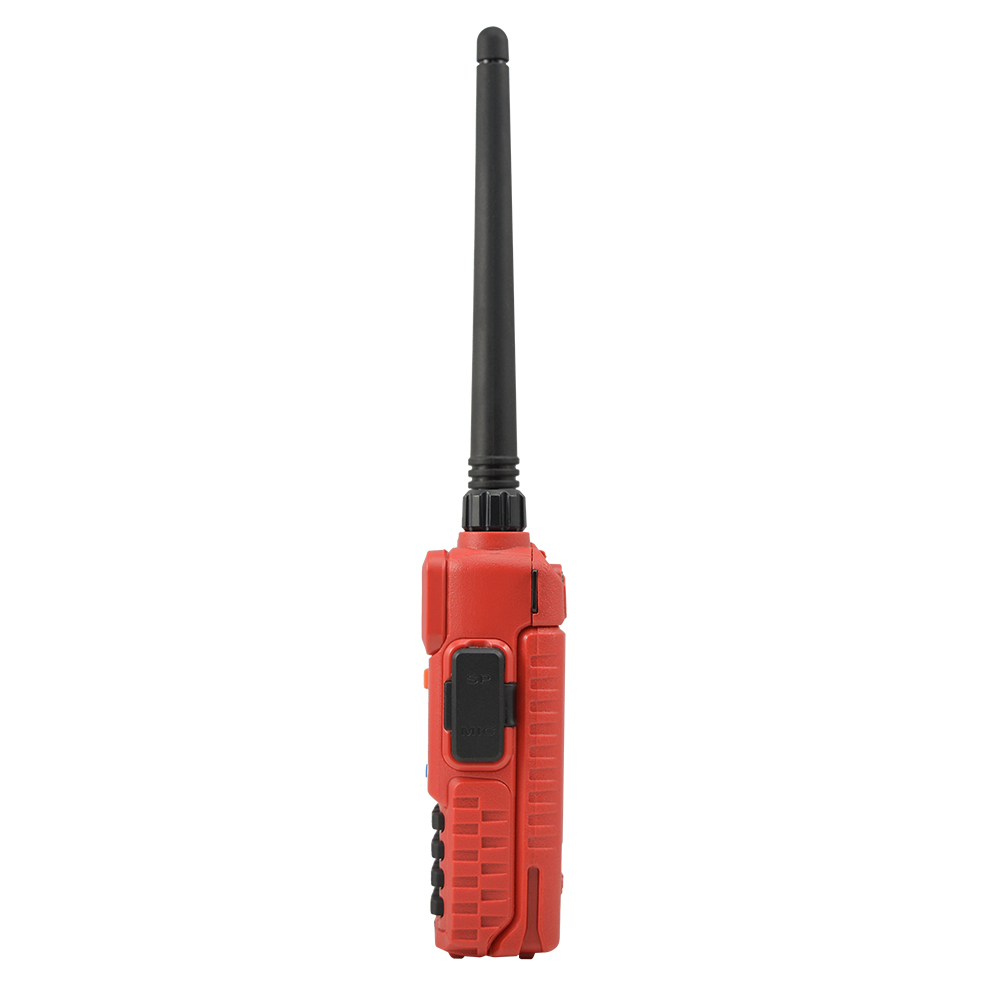

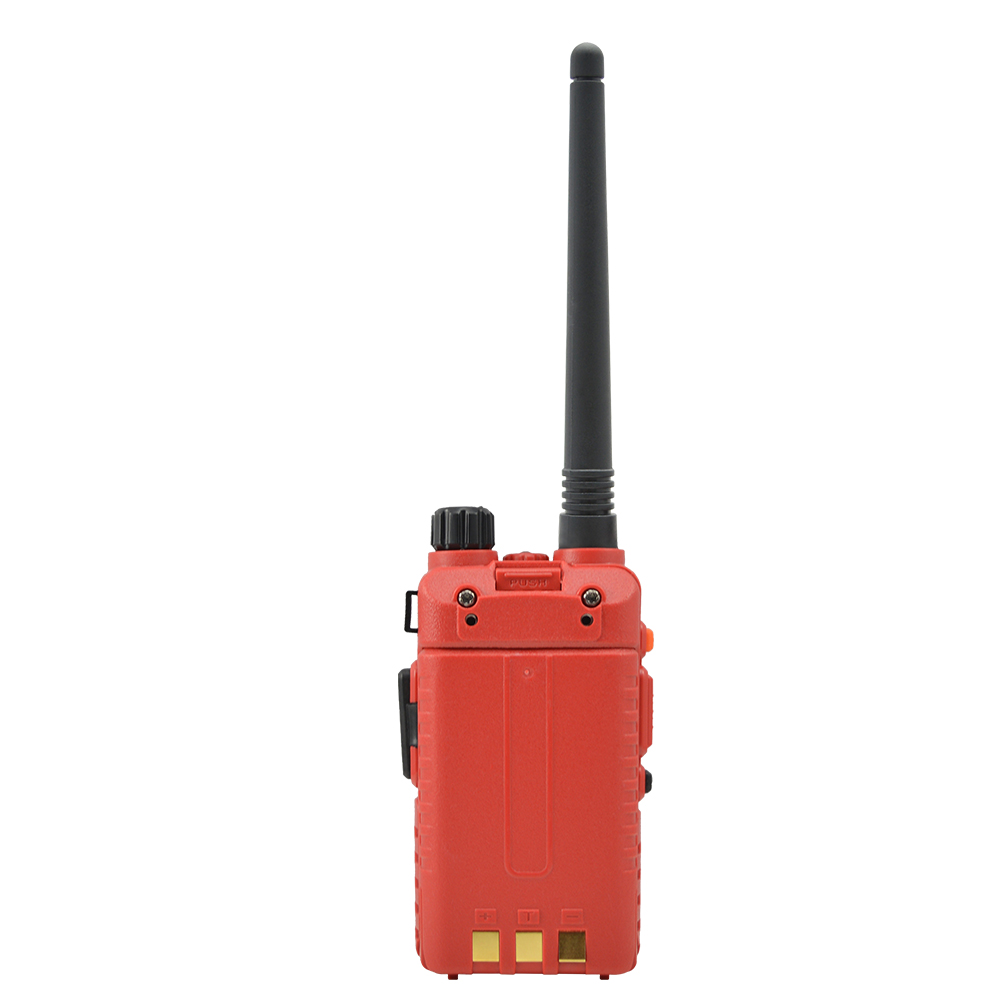

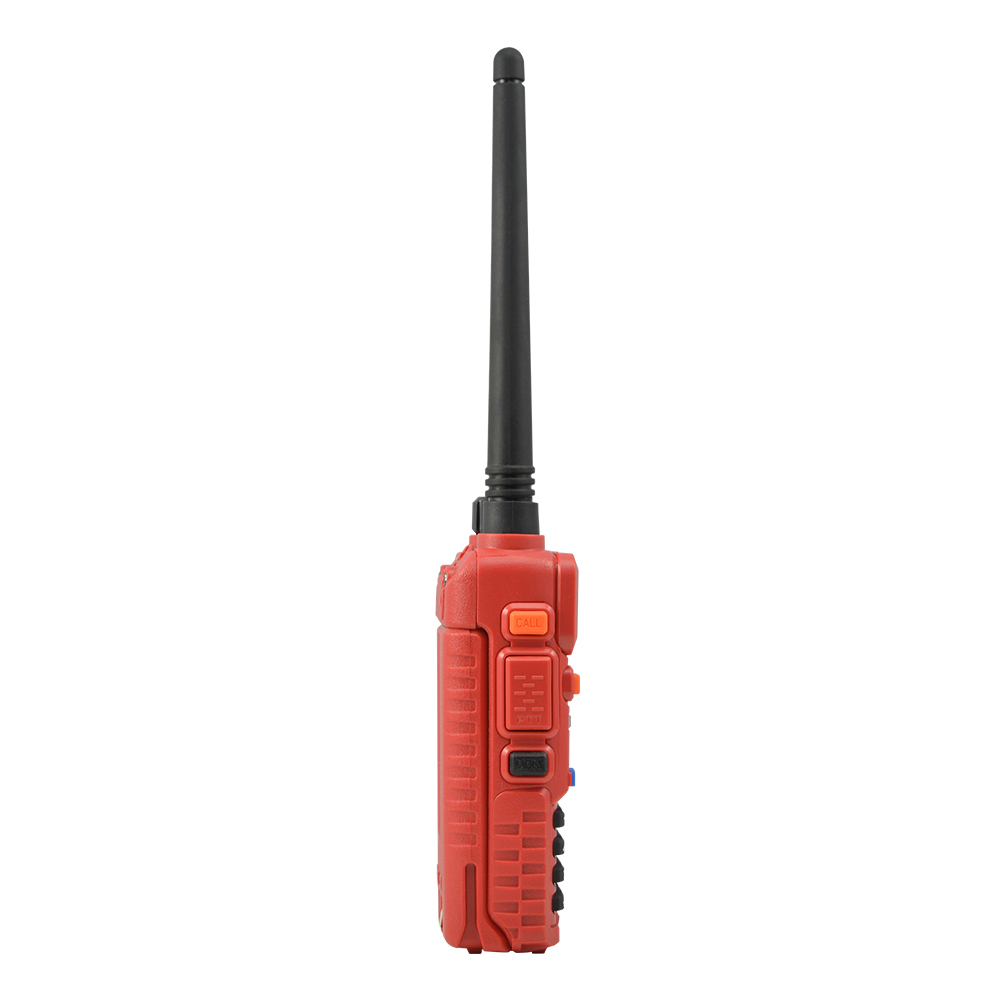

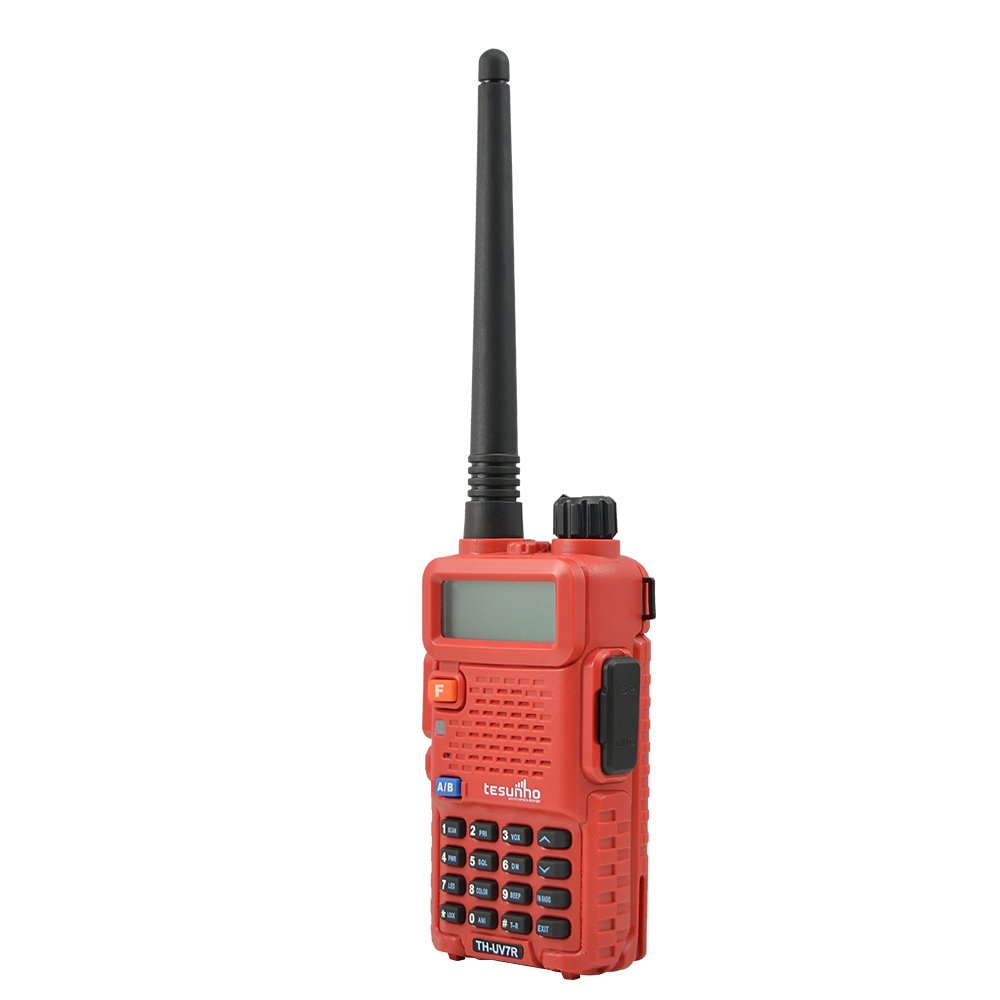

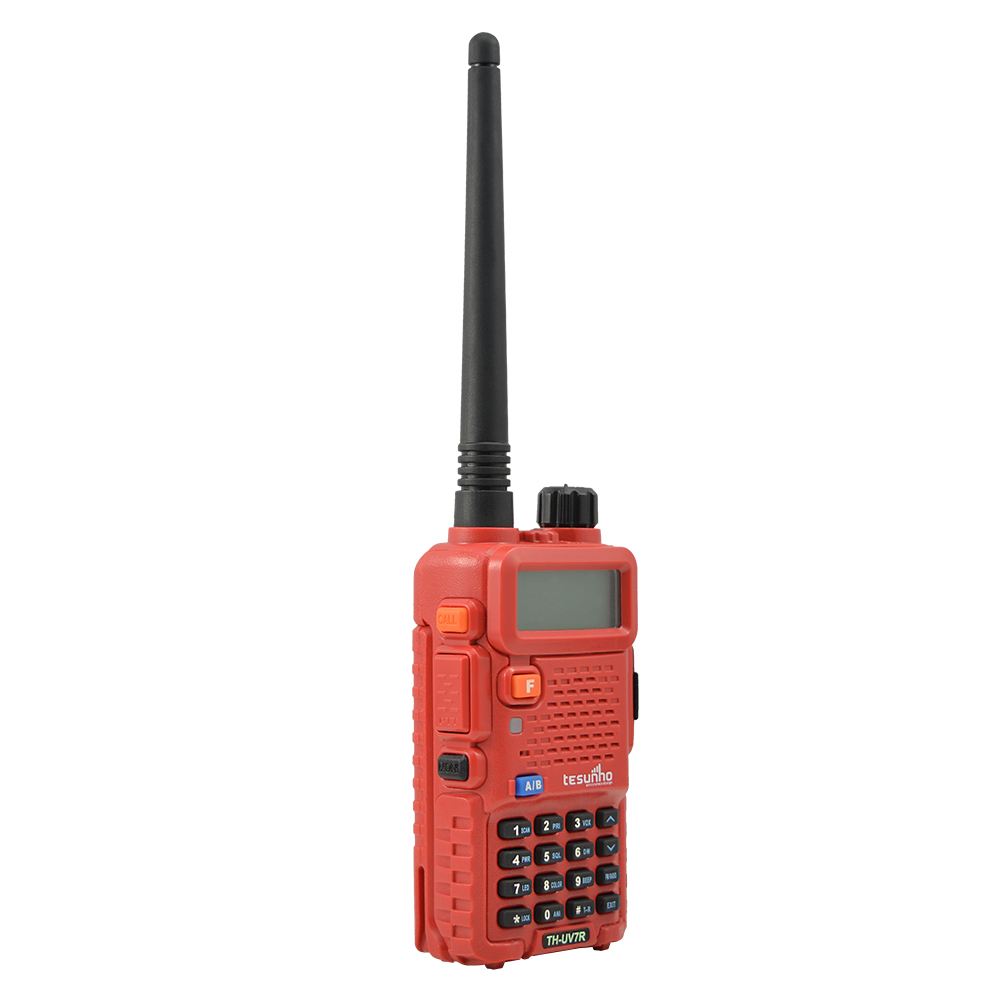

Dual Band Two Way Radio TH-UV7R

Dual Band Two Way Radio


TH-UV7R is a dual band,dual display, dual standby multifunctional two way radio. The main feature is the welcomed appearance,powerful multifunction as well as advanced and stable performance. The suitable appearance dimensions and ergonomic design not only ensure the operation experience of the radio, but also reduce the users’ workload. It has functions like FM radio, CTCSS/DCS decode encode and auto scanning,PTT ID code,1750Hz tone, etc. It has optional functions like DTMF encode and decode, 2/5 tone encode decode and scrambling password, users can choose flexibly according to their own needs.Power on message can be set arbitrarily to achieve promotion or distinguishing function. We keep improving to put the upgrade version TH-UV7R with GPS function into market.


Send InquiryBuy Now

General


Frequency Range

70-108MHz(FM Receive only)

136-174MHz&220-260MHz

or 220-260MHz&400-470MHz

or 136-174MHz&400-470MHz

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode Of Operation

Simple or semi-duplex

Dimension(W x H x D)

100 x 52 x 32 mm

Weight

250g(including battery, antenna)



Transmitter


Output power

≥4W(H) ≥0.5W(L)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

<5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation

<7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

<10%



Receive



RF Sensitivity

-122dbm(12db SINAD)

Audio power

≥0.5W

Audio Distortion

≤10%

Intermediation

≤-65dB(Wide) / ≤-60dB(Narrow)

Selectivity

≤-65dB(Wide) / ≤-60dB(Narrow)

Spurious Rejection

≤-65dB

Blocking

≥85dBuv/m

*Specifications above are in accordance with the applicable standard, due to the continuous development of technology, specifications above are subject to change without prior notice.

Certifications

Standard Packing

Payment Method

Trade Assurance  / Bank transfer / Western Union / MoneyGram / Paypal / L/C

Our Services

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

About Us:

about us.jpg

Feature


Dual Band,Dual Display,Dual Standby

Both UHF and VHF can be chosen and receive , frequencies on both A and B channels can be shown simultaneously.

Mini & Deft Appearance

Unique appearance design, mini and deft, convenient to carry, easy to operate, you still feel comfortable even if using for a long time.

Clear Loud Sound

Advanced and innovative structural design of acoustic propagation, can greatly reduce the background noise to make sound clearer and more sonorous.

VOX Operation

It has VOX function. You can talk directly when you are using headset Mic.

Power-On Personalized Display Settings

You can set personalized information to display on the screen when power on. It makes your radio unique from others.

Color Optional

Black, camouflage, red, sandy, orange, green.


Main Function



U-V,V-V,U-U Working Mode

Two channels can work on both UHF and VHF band,VHF and VHF, UHF and UHF working mode.

Monitor Function

Press the monitor button to turn on the receiving circuit, check voice on the current channel. This function is particularly effective for receiving weak signal.

CTCSS/DCS Setting

To avoid listening to a unrelated call on the same channel.

Channel Scan

To scan each channel at certain time intervals in order to monitor the call of each channel.

Built-in FM Radio

Built-in FM radio function can receive signal between 76MHz and 108MHz.

128 Groups of Memory Channels

128 memory channel options help to solve the channel distribution problem.

SOS Emergency Call

Emergency call function can ensure your safety.

Tri-color LED Background Light

Orange,blue,purple. Tri-color background light can be selectable, more personalized.

Voice Prompt Function

Keypad and manual voice prompt function make the operations more simple and understandable.

Reverse/Different Frequency Function

Using the reverse function, radio transmitting frequency and receiving frequency will be swapped, the set CTCSS&DCS can also be swapped. Generally the function can be used with repeater.

Wire Clone Function

The radio functions and parameters can be copied to the other radio the clone cable.

1750HZ Tone

It is used to transmit 1750Hz repeater signaling.

Wide /Narrow Band Option

The wide/narrow band can be chosen through programming software. Default value: wide band.

Flashlight Function

The bright flashlight make your nighttime usage more convenient and uninterrupted.


*Due to the continuous development of technology, specification above are subject to change without prior notice.
